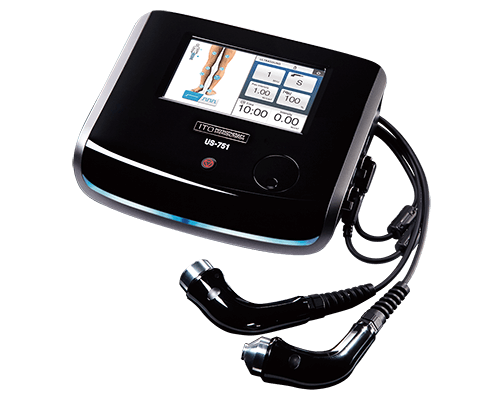

Shop - US-751

Description

• Features

  7-INCH TFT COLOR TOUCH SCREEN



  The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

  LOW BNR



  BNR is one of the indications for quality of the ultrasound beam. The BNR of US-751 is 2.4 to 3.0 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

  HUMAN BODY DIAGRAM



  You can simply choose the area to be treated from Human Body Diagram. 42 parameters are pre-set. All the pre-set parameters can be modified to suit your particular needs.

  VISUAL PROBE CONTACT STATUS



  Light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

  SELECTABLE COUPLING SENSITIVITY



  You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.

  MULTI LANGUAGES



  You can select language from English, German, French, Spanish, Portuguese, Swedish, Turkish & Chinese.

  2 ULTRASOUND PROBES CONNECTABLE



  You can connect both small (2 cm²) and large (11 cm²) head ultrasound probes to quickly change the treatment head.

  Specifications

  Power supply	AC 100–240 V, 50/60 Hz
  Power consumption	85 VA
  Number of channels	1
  Display	Full-color, 7″ LCD touch screen
  Safety class according to IEC 60601-1	Class I, Type BF
  Dimensions	290 (W) x 233 (D) x 96 (H) mm
  Weight	3 kg
  Ultrasound mode	Continuous, Pulsed (5%, 10%, 20%, 30%, 40%, 50%)
  Ultrasound intensity (max.)	Continuous: 2 W/cm2, Pulsed: 3 W/cm2
  Ultrasound frequency	1 MHz, 3 MHz
  Pulse frequency	16 Hz, 48 Hz, 100 Hz
  Pre-set parameters	42
  Timer	Max. 30 min.
  Number of US Probe connections	2
  Probe head diameter	Large 37.5 mm Small 16 mm
  BNR US Probe head (IEC Standards)	Large 1 MHz: 3.0 3 MHz: 2.4 Small 1 MHz: 2.9 3 MHz: 2.4
  ERA US Probe head (IEC Standards)	Large 1 MHz: 5.0 cm2 3 MHz: 5.0 cm2 Small 1 MHz: 0.7 cm2 3 MHz: 0.5 cm2
  Probe cable length	2 m
  Class of protection against ingress of harmful water	IPX 7 (US Probe)
